100（120）mm智慧升降
| 設備型號 | Model | HP280G | HP380 |
|---|
| 鋸切長度 | Max.cutting length | 2600mm | 3750mm |
| 鋸切寬度 | Max.cutting width | 2600mm | 3800mm |
| 鋸片最大高度 | Max.height of blade | 90mm智慧升降 |
|

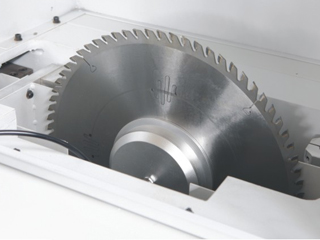

| 主鋸片 | Main saw blade | 400x4.4x75x72T | 400x4.4x75x72Tx140 |
| 槽鋸片 | Scoring saw blade | 160x4.4/5.4x45x24T | 160x4.4/5.4x45x24T |
| 鋸座前進速度 | Forward speed of saw carriage | 5-80m/min | 5-100m/min |
| 鋸座回程速度 | Backward speed of saw carriage | 0-80m/min | 5-100m/min |
| 機械手前進速度 | Forward speed of PRF program fence | 0-80m/min | 5-100m/min |
| 機械手回程速度 | Backward speed of PRF program fence | 0-80m/min | 0-100m/min |
| 側壓裝置 | Side pressure device | 選配氣動雙側壓輪 | 氣動雙側壓 |
| 主鋸軸馬達功率 | Motor power of main saw shaft | 15kw | 18.5kw |
| 槽鋸軸馬達功率 | Motor power of scoring saw shaft | 2.2kw | 2.2kw |
| 工作電壓 | Voltage | 380V/50Hz | 380V/50Hz |
| 工作臺高度 | Working table's height | 920mm | 920mm |
| 機械手數量 | Number of PRF program fence | 7pcs | 11pcs |
| 氣浮臺 | Air floating table | 3pcs | 4pcs |
| 氣浮臺高壓風機 | High pressure blower of air floating table | 2.2kw | 2.2kw |
| 壓縮空氣 | Air compression | 6bar | 6bar |
| 空氣總用量 | Air capacity | 150L/min | 150L/min |
| 最小抽塵速度 | Min.speed of dust collection | 26m/sec | 26m/sec |
| 負壓，至少 | Negative pressure(at least) | 1200pa | 1200pa |
| 抽塵風量 | Input air capacity for dust collection | 4400m3/h | 4400m3/h |
| 抽塵管管徑（4個） | Diameter of dust collecting holes | 200 x 2pcs/ 100 x 2pcs | 200 x 2pcs/ 100 x 2pcs |
| 包裝尺寸 | Packing size | 4800x1350x1900mm/4600x920x1000mm | 6000x1350x2170mm/4600x920x1000mm |
| 機械占地面積 | Floor area | 5000x6000mm | 7600x6000mm |
| 重量 | Weight | 4500kg | 6000kg |
| 設備型號 | Model | HP280G | HP380 |
|---|
| 鋸切長度 | Max.cutting length | 2600mm | 3750mm |
| 鋸切寬度 | Max.cutting width | 2600mm | 3800mm |
| 鋸片最大高度 | Max.height of blade | 90mm 智慧升降 | 100(120)mm 智慧升降 |
| 主鋸片 | Main saw blade | 400x4.4x75x72T | 400x4.4x75x72Tx140 |
| 槽鋸片 | Scoring saw blade | 160x4.4/5.4x45x24T | 160x4.4/5.4x45x24T |
| 鋸座前進速度 | Forward speed of saw carriage | 5-80m/min | 5-100m/min |
| 鋸座回程速度 | Backward speed of saw carriage | 0-80m/min | 5-100m/min |
| 機械手前進速度 | Forward speed of PRF program fence | 0-80m/min | 5-100m/min |
| 機械手回程速度 | Backward speed of PRF program fence | 0-80m/min | 0-100m/min |
| 側壓裝置 | Side pressure device | 選配氣動雙側壓輪 | 氣動雙側壓輪 |
| 主鋸軸馬達功率 | Motor power of main saw shaft | 15kw | 18.5kw |
| 槽鋸軸馬達功率 | Motor power of scoring saw shaft | 2.2kw | 2.2kw |
| 工作電壓 | Voltage | 380V/50Hz | 380V/50Hz |
| 工作臺高度 | Working table's height | 920mm | 920mm |
| 機械手數量 | Number of PRF program fence | 7pcs | 11pcs |
| 氣浮臺 | Air floating table | 3pcs | 4pcs |
| 氣浮臺高壓風機 | High pressure blower of air floating table | 2.2kw | 2.2kw |
| 壓縮空氣 | Air compression | 6bar | 6bar |
| 空氣總用量 | Air capacity | 150L/min | 150L/min |
| 最小抽塵速度 | Min.speed of dust collection | 26m/sec | 26m/sec |
| 負壓，至少 | Negative pressure(at least) | 1200pa | 1200pa |
| 抽塵風量 | Input air capacity for dust collection | 4400m3/h | 4400m3/h |
| 抽塵管管徑（4個） | Diameter of dust collecting holes | 200 x 2pcs/ 100 x 2pcs | 200 x 2pcs/ 100 x 2pcs |
| 包裝尺寸 | Packing size | 4800x1350x1900mm/4600x920x1000mm | 6000x1350x2170mm/4600x920x1000mm |
| 機械占地面積 | Floor area | 5000x6000mm | 7600x6000mm |
| 重量 | Weight | 4500kg | 6000kg |
注：華倫機械對產品規格及設計細節不斷研究改進，上述規格若有變更，恕不另行通知。
