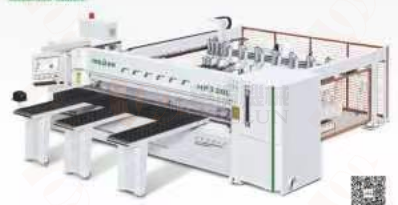

| 设备型号 | Model | HP330L |
|---|
| 锯切长度 | Max.cutting length | 3180mm |
| 锯切宽度 | Max.cutting width | 3300mm |
| 锯片最大高度 | Max.height of blade | 100mm 智能升降 |

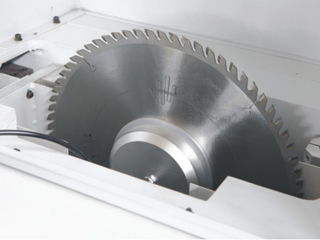

| 主锯片 | Main saw blade | 400x4.4x75x72Tx140 可选450x4.4x75x72Tx140 |
| 槽锯片 | Scoring saw blade | 160x4.4/5.4x45x24T |
| 锯座前进速度 | Forward speed of saw carriage | 5-100m/min |
| 锯座回程速度 | Backward speed of saw carriage | 0-100m/min |
| 机械手前进速度 | Forward speed of PRF program fence | 0-100m/min |
| 机械手回程速度 | Backward speed of PRF program fence | 0-100m/min |
| 侧压装置 | Side pressure device | 气动双侧压轮 |
| 主锯轴马达功率 | Motor power of main saw shaft | 18.5kw |
| 槽锯轴马达功率 | Motor power of scoring saw shaft | 2.2kw |
| 工作电压 | Voltage | 380V/50Hz |
| 工作台高度 | Working table's height | 920mm |

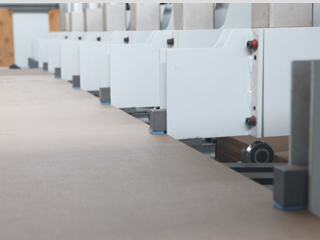

| 机械手数量 | Number of PRF program fence | 10pcs |
| 气浮台 | Air floating table | 3pcs |
| 气浮台高压风机 | High pressure blower of air floating table | 2.2kw |
| 压缩空气 | Air compression | 6bar |
| 空气总用量 | Air capacity | 150L/min |
| 最小抽尘速度 | Min.speed of dust collection | 26m/sec |
| 负压，至少 | Negative pressure(at least) | 1200pa |
| 抽尘风量 | Input air capacity for dust collection | 4400m3/h |
| 抽尘管管径（4个） | Diameter of dust collecting holes | 200 x 2pcs/ 100 x 2pcs |
| 后上料平台尺寸 | Dimension of rear feeding platform | 2500x1300x600mm |
| 包装尺寸 | Packing size | 5400x1420x2200mm/4600x920x1000mm//2600x1350x800mm |
| 机械占地面积 | Floor area | 6400x5400x1890mm |
| 重量 | Weight | 6000kg |
注：华伦机械对产品规格及设计细节不断研究改进，上述规格若有变更，恕不另行通知。
