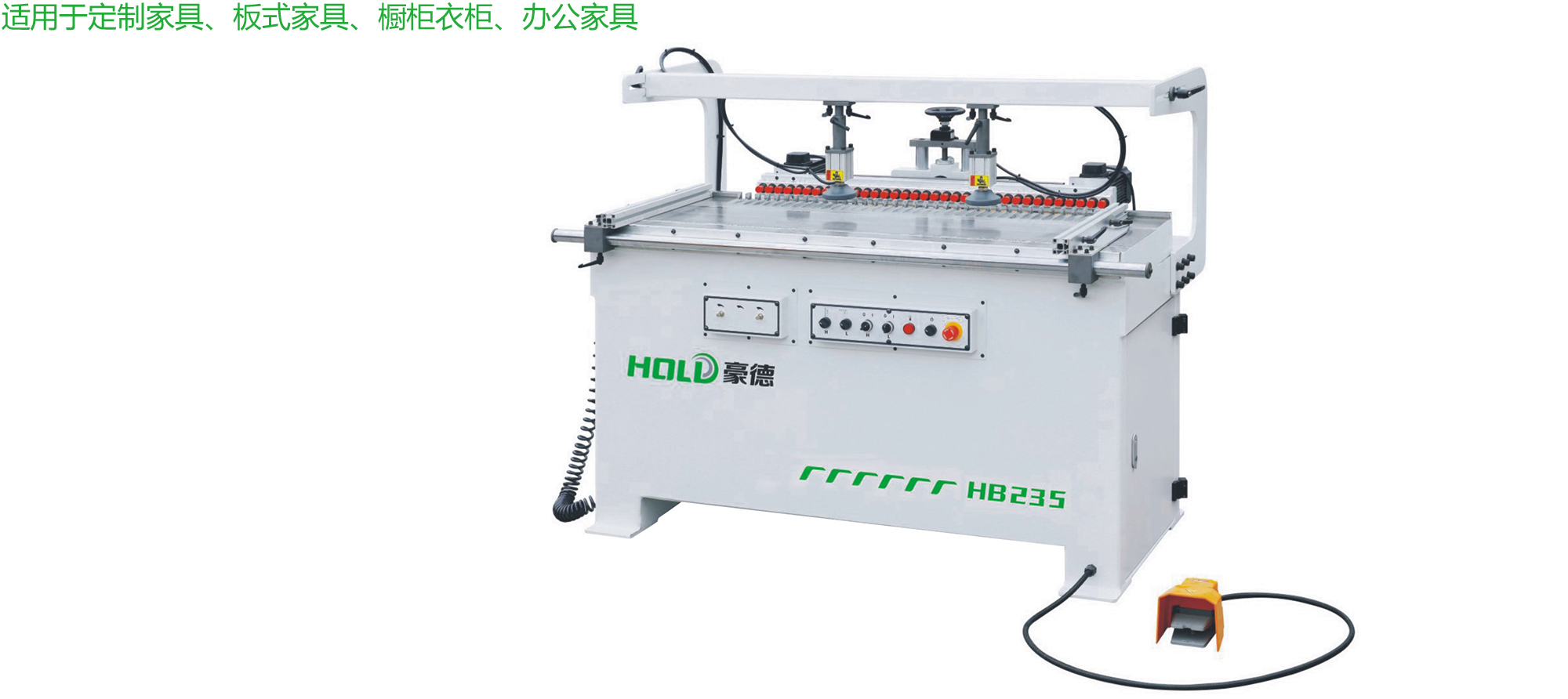

| 设备型号 | Model | HB235 |
|---|
| 最大加工宽度 | Max.wodth of workpiece | - |
| 水平钻两孔最大间距 | Max.distance of two horizontal boring position | 1088mm |
| 垂直钻排最小间距 | Min.distance of vertical drilling group | - |
| 最大工件厚度 | Max.thickness of workpiece | 80mm |
| 水平最大钻孔深度 | Max.depth of horizontal boring head | - |
| 垂直最大钻孔深度 | Max.depth of vertical boring head | - |
| 钻轴转速 | Rotating speed of boring spindles | 2800rpm |
| 垂直钻排功率 | Vertica boring power | 1.5kw x 2 |
| 水平钻排功率 | Horizontal boring power | 1.5kw x 2 |
| 送料马达功率 | Feeding motor power | - |
| 送料速度 | Feeding speed | - |
| 工作气压 | Working pressure | 0.6-0.8Mpa |
| 机械尺寸 | Dimension of machine | 1750x1200x1300mm |
| 装箱尺寸 | Packing dimension | 1800x1300x1650mm |
注：华伦机械对产品规格及设计细节不断研究改进，上述规格若有变更，恕不另行通知。
